Basic info

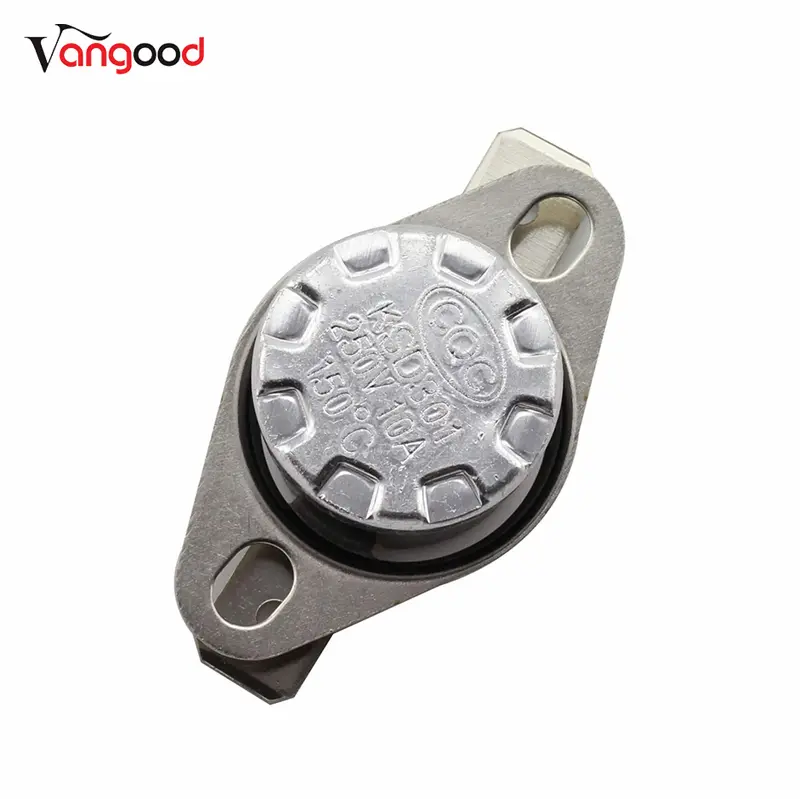

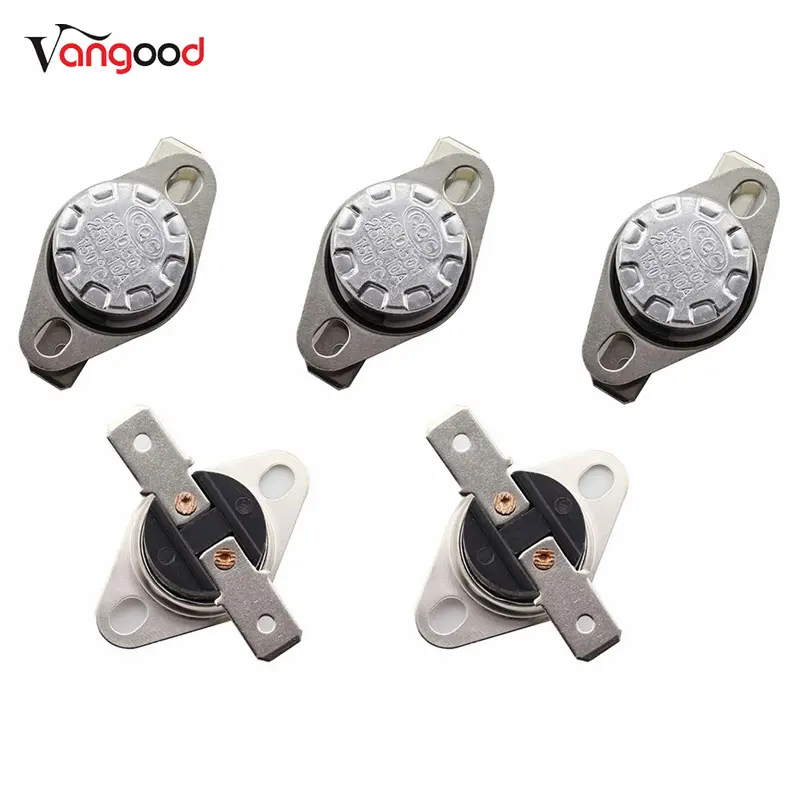

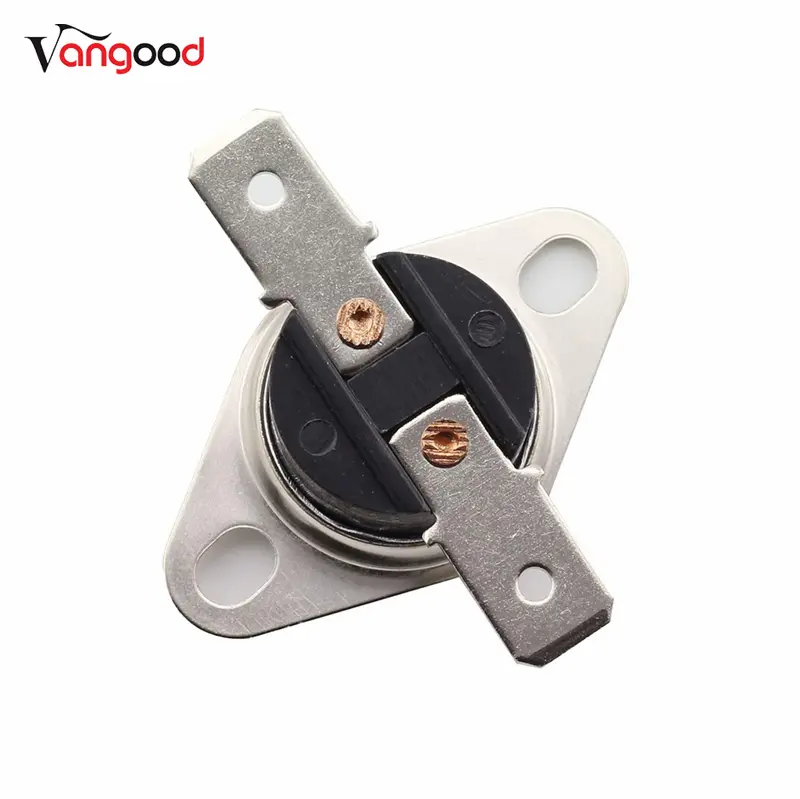

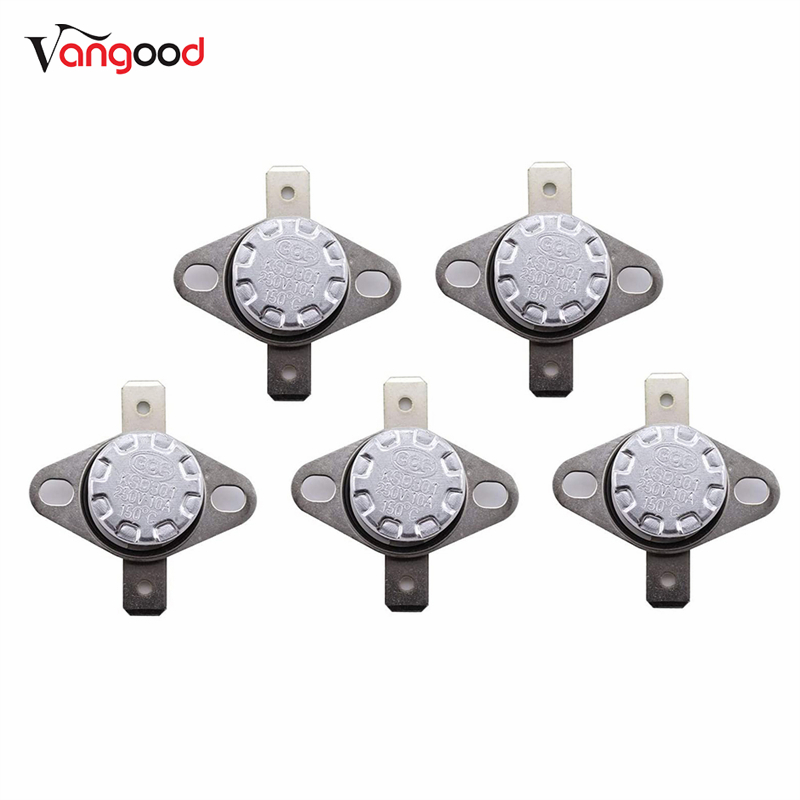

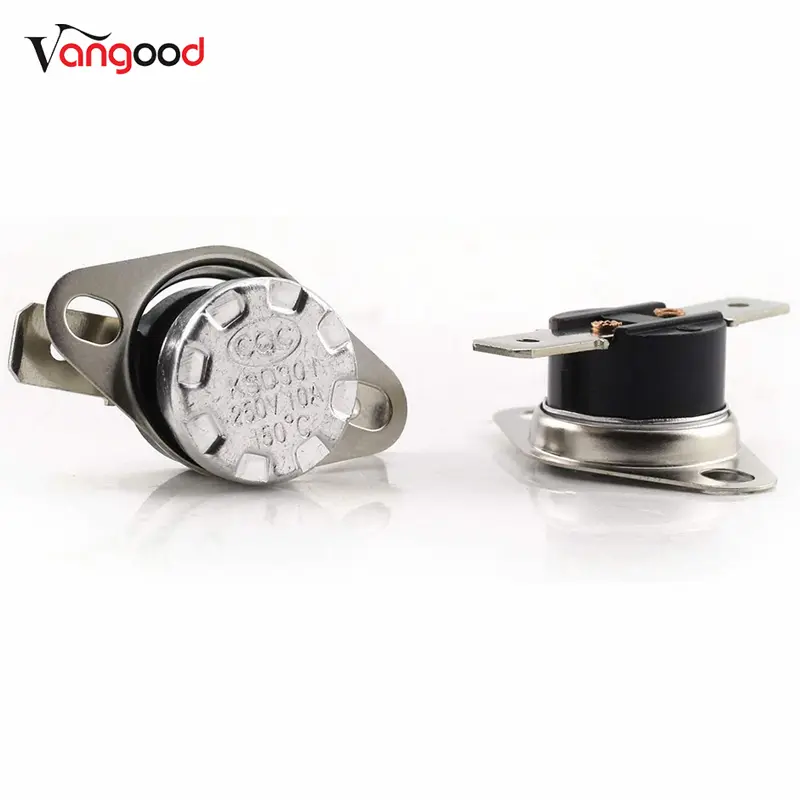

Name: Thermostat Thermal Control Switch

Model: KSD301

Rated temperature: 150 degrees centigrade

Action Type: NC (Normally Closed)

Rated Voltage: 250 Volt

Rated Current: 10 Amp

Description

1.Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

2.General purpose, automatic reset, low cost, large capacity, minute current thermostats.

3.The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 150 degrees centigrade. Widely used for temperature control or protection for household electric appliances.

4.Mainly used for motor electric heating water dispenser, water bottles, disinfection cupboard, disinfection cabinet, coffee shell, air conditioning, water heater, electronic cooker, electric iron, dryer, heater and motor cleaner and so on.

Thermal automatic temperature control switch KSD301/KSD302 10A/15A/16A/30A thermostat temperature switch.

The thermostat of the water heater is mainly when the temperature of the water heater is different from the set temperature, the sensor transmits the temperature difference signal to the corresponding device, and achieves the function of controlling the temperature by adjusting the heating temperature, and realizes automation.

It can control the water temperature. The thermostat is very useful, it is to control the water temperature. If the water pressure is not up to or the water pressure is too high, the high temperature controller can play the role of regulation and protection. It can also protect the circuit. The electric water heater temperature controller circuit consists of a power supply circuit, a leakage protection circuit, a temperature control circuit, a water level indicator and a dry-burn prevention circuit to form a complete temperature control system.

It can also be automated. The electric water heater is heated or not heated after the “thermostat” is turned on and off. After the circuit is turned on, if the water temperature is lower than 50°C (the critical temperature set by most brands), the temperature controller is automatically switched on and the water heater starts to heat. When the water temperature reaches the preset temperature of the water heater (75℃～85℃ for most brands), the thermostat is switched off and the water heater stops heating.

Thermostats are widely used in various home appliances, such as refrigerators, water dispensers, water heaters, coffee makers, etc. The quality of the thermostat directly affects the safety, performance and life of the whole machine, and is a very critical component. Among the many technical indicators of thermostats, service life is one of the most important technical indicators to measure thermostat products.
