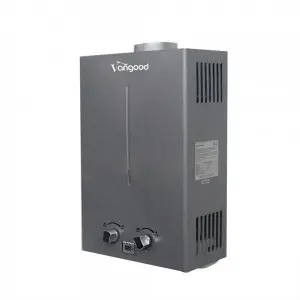

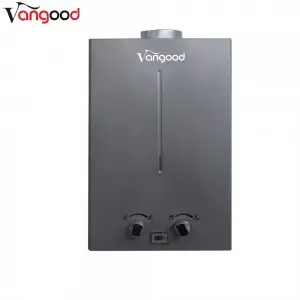

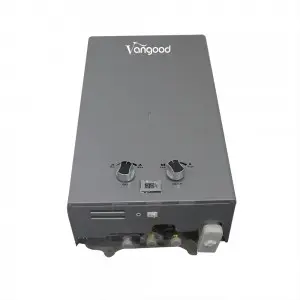

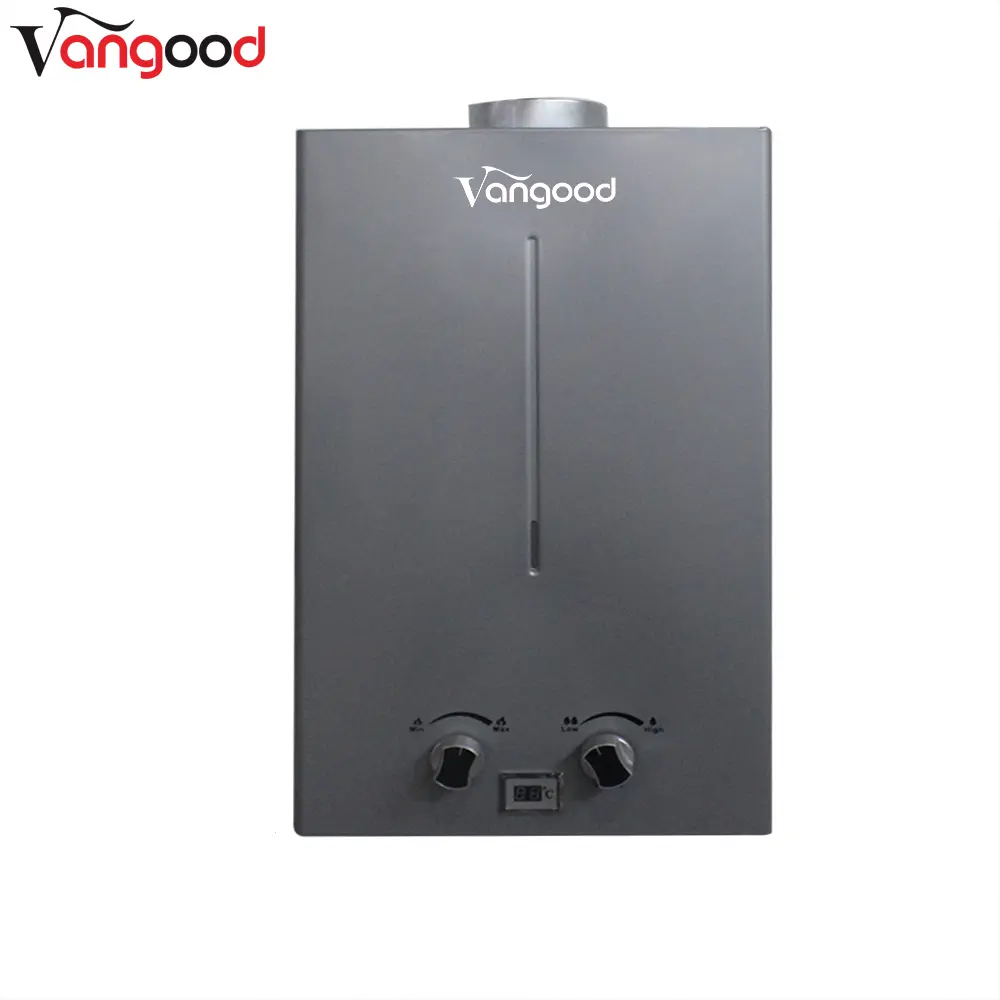

Direct Sales Multipoint Water Heater With Precise Temperature Control

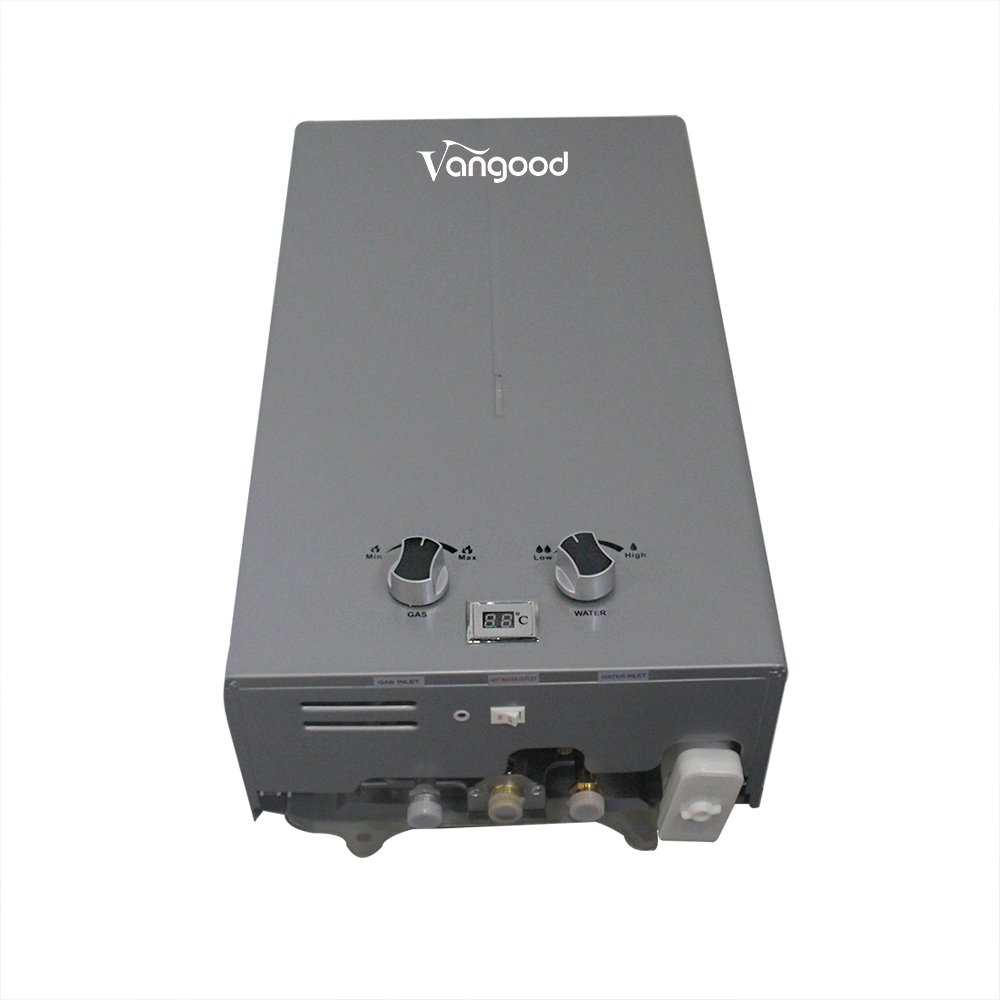

1. Simple And Easy To Use: Only have two knobs, which are used to adjust the water temperature and gas flow respectively.
2. High Efficiency: high thermal efficiency and rapid hot water supply, which can meet the needs of users.
3.Energy Saving:Compared with traditional electric water heaters, it can use energy more effectively and save energy resources.
4. Safe And Reliable: Hot water heater equipped with safety devices such as anti-smoke and anti-gas leakage to ensure safety during use.
5. Strong Durability: Adopts high-temperature resistant materials.It has a long service life and stability.
Details
-10L Gas Water Heater Flue Type
-0.7mm White Coated Panel
-Gas Burner: 13T Rows

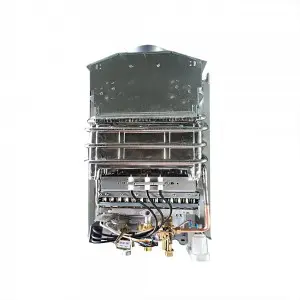

-2.0kg Coat Tin Copper Heat Exchanger
-Common Copper Valve
-With LCD Display
-Gas Type: LPG Or NG
-starting voltage: Batteries( DC3V)
-Over heat protection sensor(85℃)
Product Parameter
|
Water Flow(L/min) |
10L |
12L |
14L |
|
Rated heat load |
20kW |
24kW |
28kW |
|
Gas type |
NG/LPG |
||
|
Ignition type |
Automatic pulse ignition |
||
|
Flue pipe diameter |
Φ110mm |
Φ110mm |
Φ130mm |
|
Applied water pressure |
0.025-0.75Mpa |
||
|
Power supply |
DC,3V |
||
|
Gas Inlet |
G 1/2" |
||
|
Water Inlet |
G 1/2" |
||
|
Water Outlet |
G 1/2" |
||
|

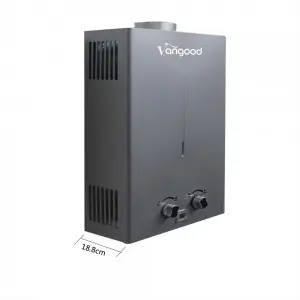

Production Dimension |
550*330*188mm |
610*350*188mm |
650*400*188mm |
|
Packing Dimension |
635*395*245mm |
710*410*245mm |
745*455*250mm |
|
G.Weight |
9.2kgs |
10.5kgs |
13.2kgs |
|
Loading Capacity |
490pcs/980pcs/1150pcs |
420pcs/840pcs/1000pcs |
350pcs/700pcs/810pcs |
