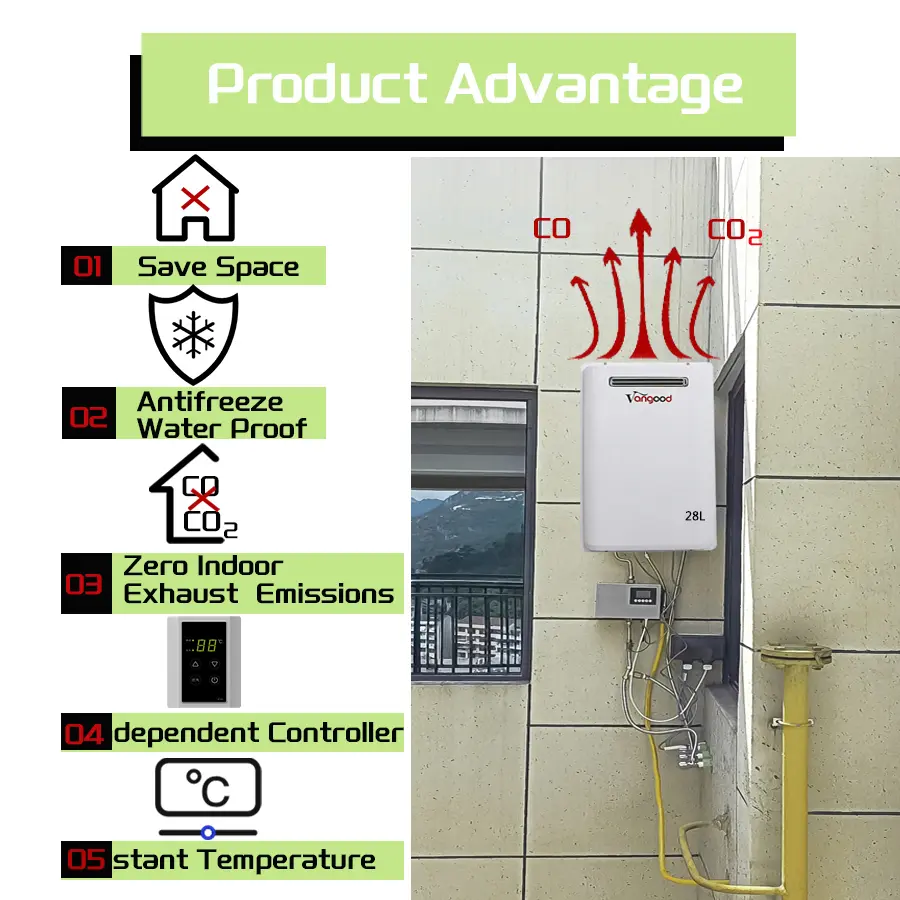

Outdoor installation: Designed for outdoor locations, it is waterproof, windproof, frostproof and sunlight resistant to ensure normal operation in various weather conditions.
High energy efficiency: High-efficiency energy utilization rate up to 89.98%, energy-saving and environmentally friendly, in line with the requirements of modern green life.
High hot water supply speed: With large capacity, it can provide continuous hot water quickly.
Anti-freeze protection function: The lowest temperature can reach -30 degrees Celsius, ensuring the reliability of the equipment in cold weather.
Convenient control: Equipped with a digital remote control, users can conveniently control and adjust the hot water temperature.
Low noise design: Gas outdoor water heater provides a quieter usage environment.
Power outage memory function: When an unexpected power outage occurs, the outdoor water heater can return to the previous temperature setting when restarted without manual adjustment.
1. Imported microcomputer intelligent control system.
2. External gas water heater equipped with water volume server, water temperature is more accurate.
3. Carbon monoxide excessive prevention device, prevent in advance, no need to alarm.
4. Seamless switching of firepower, water temperature is not hot and truly constant temperature.
5. 360° safety protection, more secure bathing.
6. Shared hot water at multiple points to meet the hot water needs of multiple water points in the home.
7. Low nitrogen and oxygen emission technology, more environmentally friendly.

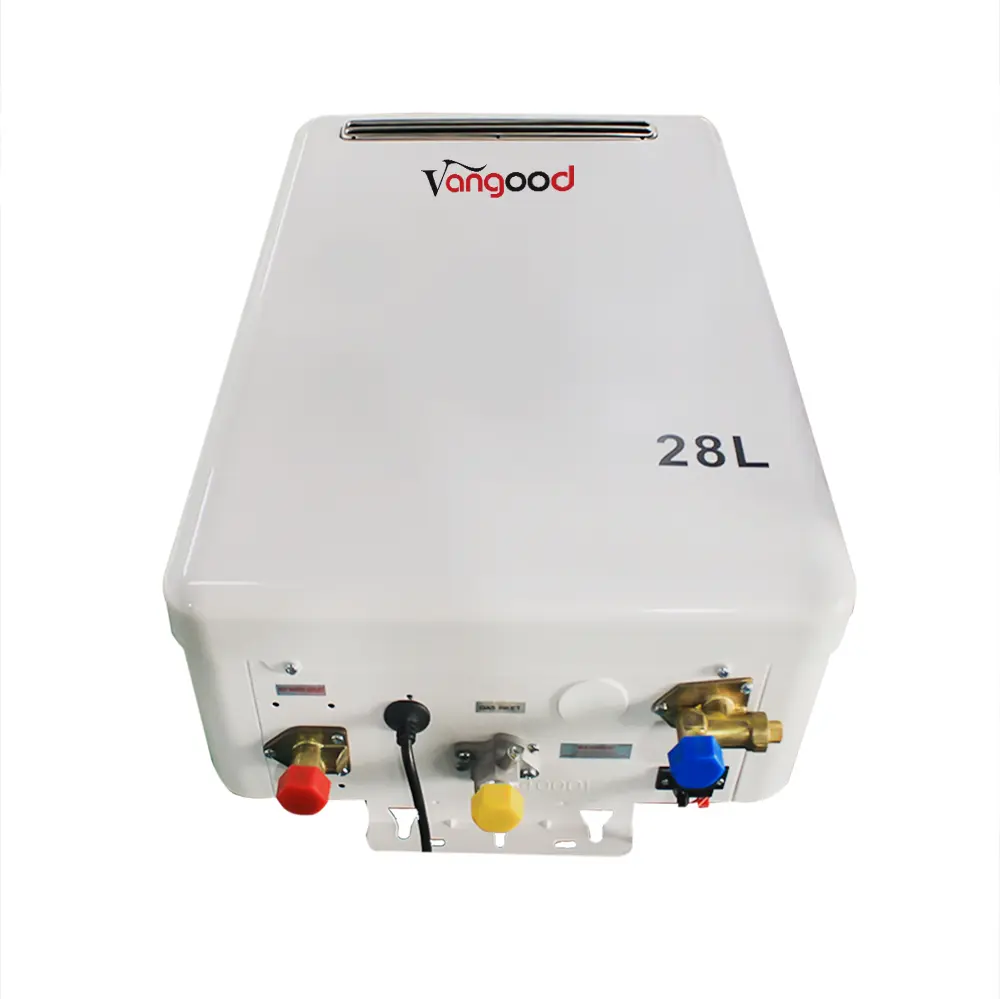

type | Outdoor type |
Weight(kg) | 28 |
Thermal efficiency (energy efficiency level) | >88% |
Minimum hot water production rate (Δt=25℃)(kg/min) | 28 |
Cold and hot water connection diameter | R1/2″ |
Rated electrical power (W) | 50 |
Applicable water pressure | 0.1-1MPa |
Carbon monoxide excess prevention device | yes |
Air burning safety device | water sensor |
overheating prevention device | Thermal fuse (fuses at 129°C) |
residual fire prevention device | Bimetal type (97℃ OFF) |
Gas connection diameter | R1/2″ |
Rated voltage | ACV220V/50HZ |
Minimum starting water pressure (kPa) | 10kPa(0.1kgf/cm²) |
Temperature control range (℃) | 37~75 |
