Professional China Gas Cooker Parts - Thermocouple Solenoid Valve Flameout Protection Gas Stove Accessories – Vangood

Detail

Kitchen cooking gas leak detectors thermocouple gas stove thermocouple

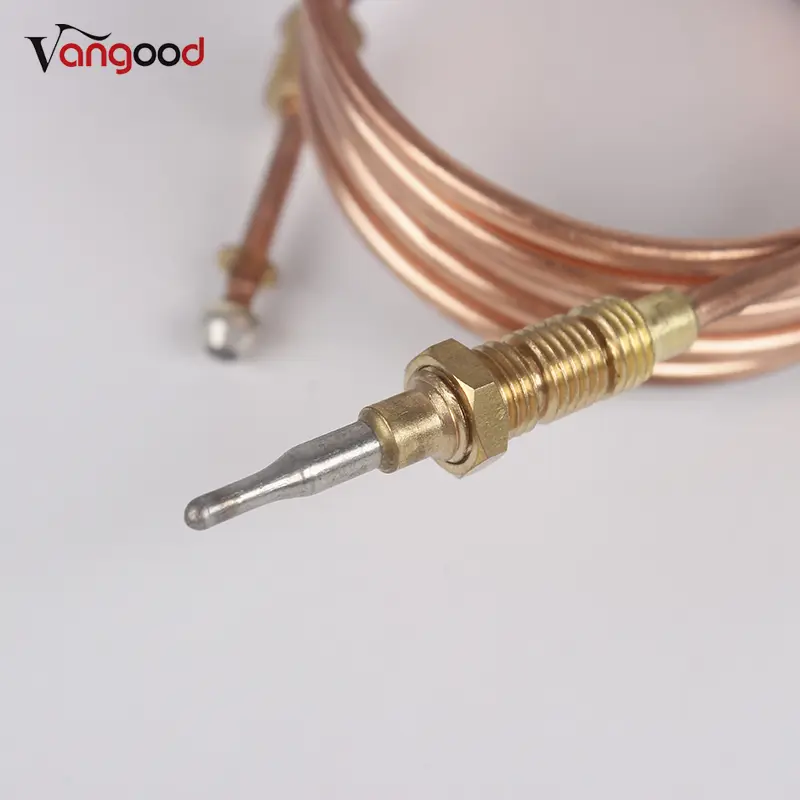

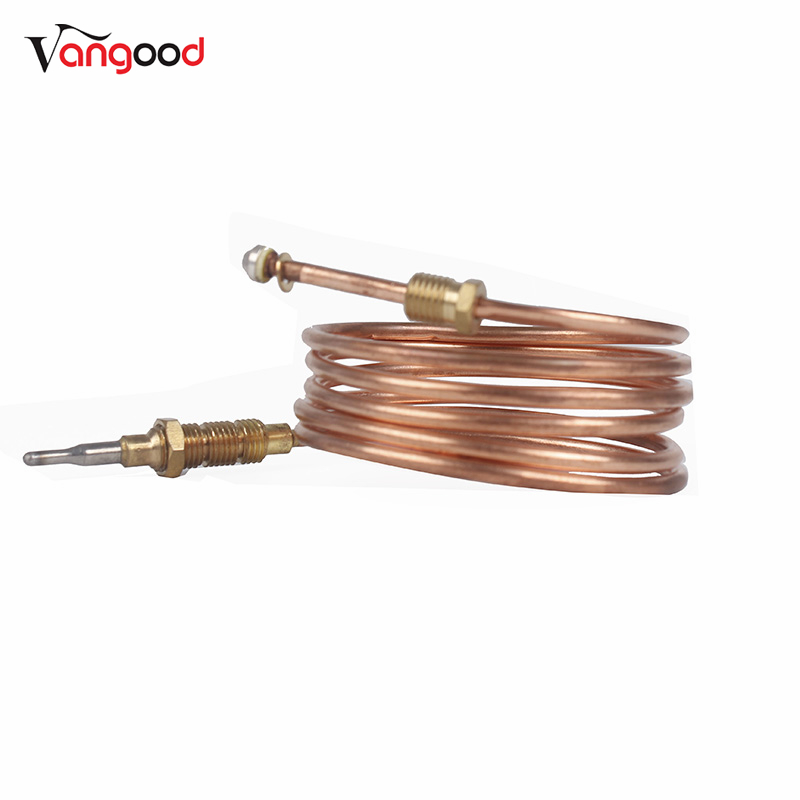

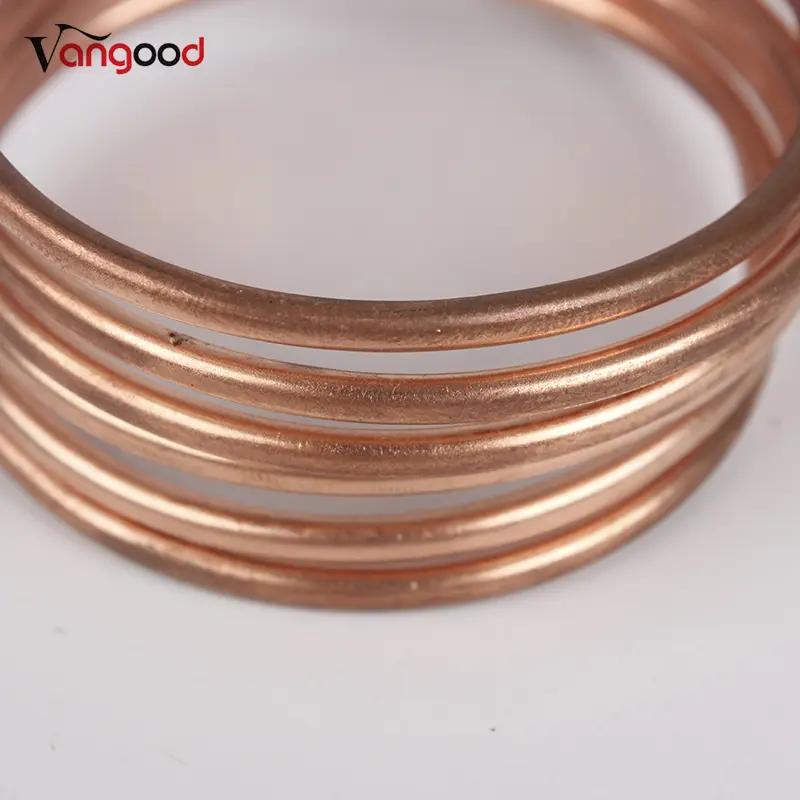

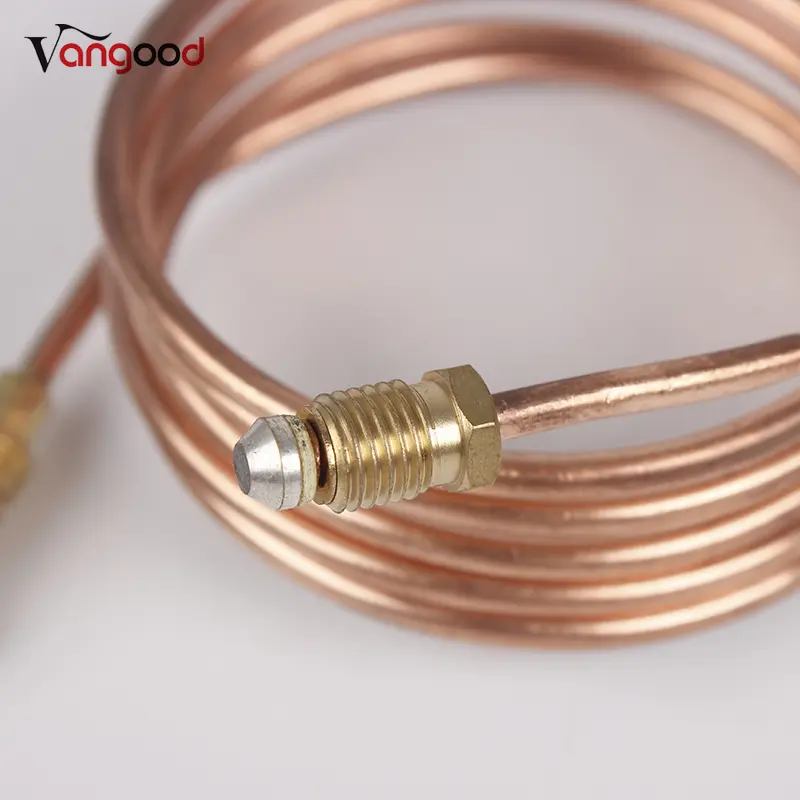

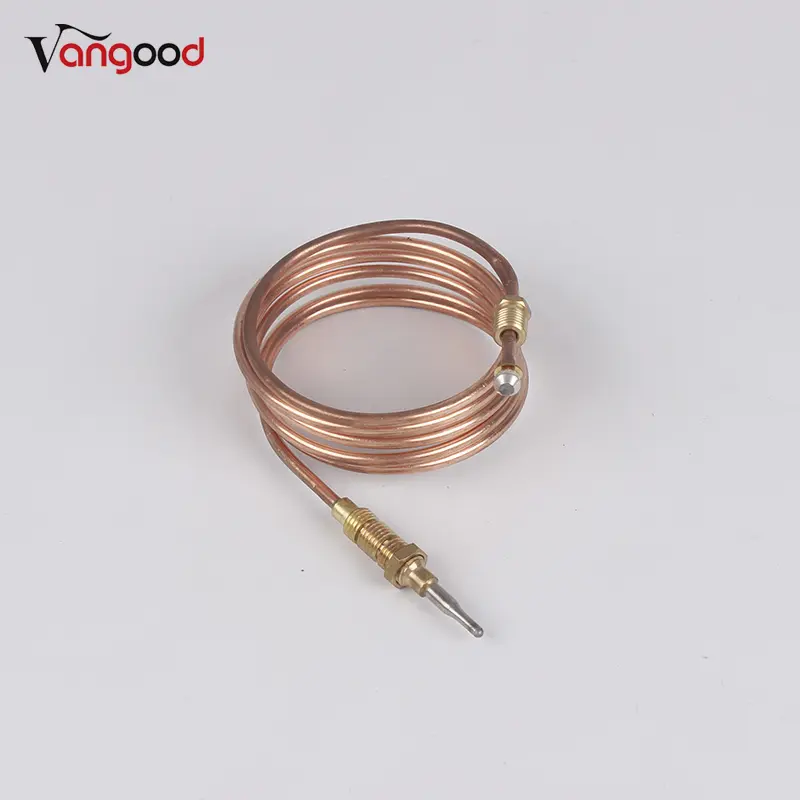

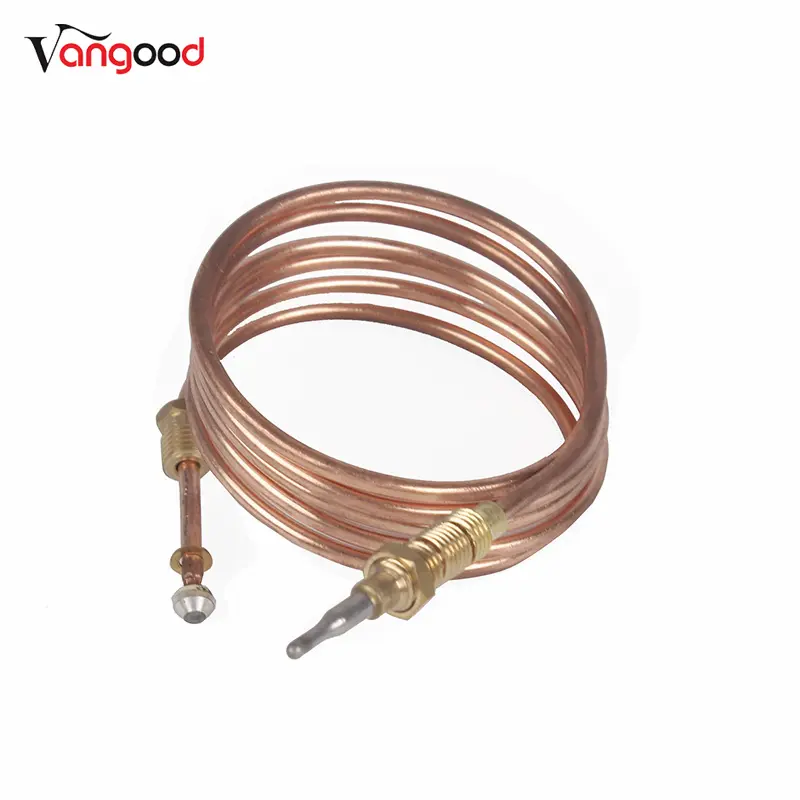

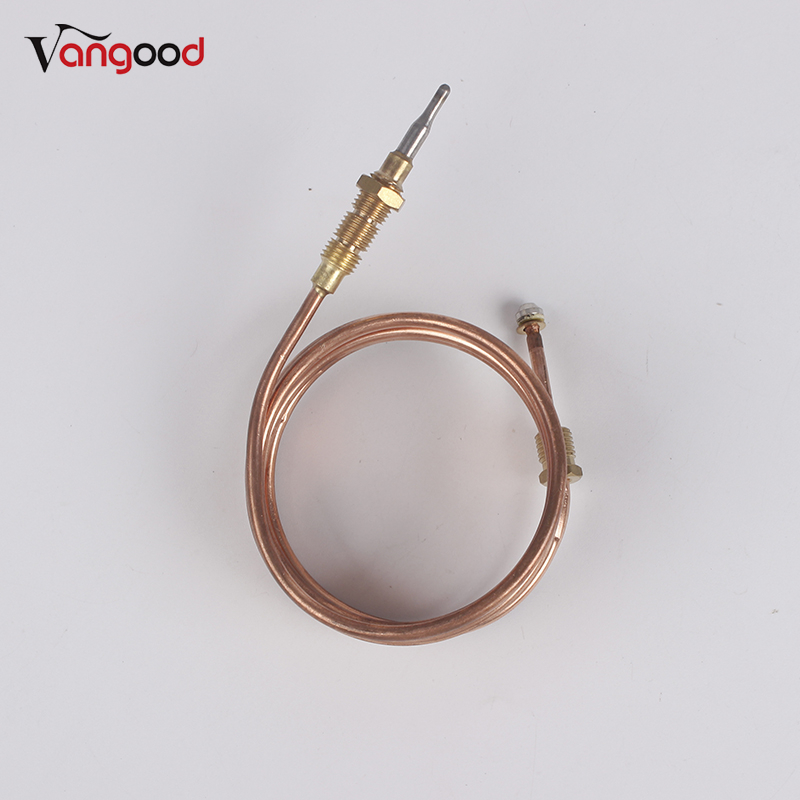

UNIVERSAL GAS OVEN COOKER THERMOCOUPLE

Gas Stove Thermocouple Universal 1200 MM Will fit a wide range of Gas Stoves, ovens, cooktops and Ranges.

kitchen gas oven copper thermocouple for smoker

Copper needle thermocouple induction needle probe solenoid valve gas cooker flameout protection universal accessories.

There are two valves on the gas pipeline of common household gas stove products, one is the cock valve for switching the gas stove, and the other is the solenoid valve built into the stove panel. When there is an accidental flameout condition, such as soup or porridge, the soup overflows. When the flame is extinguished, the plug valve is in the open state at this time, and only one valve (solenoid valve) can automatically close, which plays a role of safety protection. Therefore, this device is particularly important. The shorter the valve closing time, the less gas leakage.

Generally there are the following two types of flameout protection.

A. Thermocouple extinguishing protection: using the physical properties of metal, it belongs to temperature difference induction, and the flameout protection action is controlled by temperature induction. When the temperature is lower than a certain temperature, the gas source is cut off immediately, which is an instant reaction, and the general extinction time is about 5 to 10 seconds.

B. Ion induction extinguishing protection: using the photoelectric properties of the flame, when the flame deviates from the sensor needle, it will immediately make a judgment within 0.1 seconds, and cut off the gas source within 5 to 8 seconds.

The biggest advantage of thermocouple extinguishing is that the success rate of cutting off the gas source is high. The disadvantage is that the time is not fast enough. Although the reaction of ion induction extinguishing is quick, if the flame is temporarily blown away from the induction needle by natural wind, it will also cause the solenoid valve to cut off the gas source, so you have to re-ignite. For this, many manufacturers have made a delay intelligent judgment whether the flame is really turned off. Therefore, the ion induction flameout protection technology is more suitable for gas water heaters ( sealed combustion).
